Custom Control Cables Accessories , Auto Parts & Connections , Rod Ends , Ball Joints
【 Applications 】
Numerous precision mechanical motion transfer devices/applications,
including:
• Industrial equipment
• Precision machinery
【 Features 】
• Oil impregnated bronze raceway delivers longer wear life and lowers maintenance cost (high
precision, frictionless performance)
• Can be used in a wide range of temperatures (including ultra high temp):
-30°F — 300°F(-34°C —149°C)
• Offered in studded and right or left-handed versions
• Special custom alloy construction available
• Custom assemblies can be built to your specifications
• Meets ISO 12240 (DIN 648)
【 Material 】
Ball
• 52100 Steel Rc 56 Min.
• Hard Chrome Plated
Body
• Low Carbon Steel
• Zinc Plated, Clear Dichromate Treated
Race
• Sintered Phosphor Bronze
• Oil Impregnated
【 Rod Ends Industrial / Commercial 】
Suitable for many high precision/mechanical motion transfer applications, the DBM/DBF Series offers a four-piece, bronze race design in metric thread sizing. Its oil impregnated bronze raceway delivers precise and extremely low friction performance, leading to longer wear life, higher temperature performance and lower maintenance costs. Ball materials are produced from bearing quality steel that is thru hardened and finish ground, adding to its precision fit and increased wear performance. Body materials are produced from economical low carbon steel and are zinc plated for extended corrosion resistance. Its clear chromate treatment is suited for high visibility exposed surfaces requiring aesthetically pleasing bright metal finishes. It can be used in a wide operating temperature range. Studded and right or left-handed thread versions are available.Grease fittings are optionally available.
The DBM/DBF Series is just one of many within our broad line of industrial/commercial rod ends. For full product line detail, contact us for a comprehensive catalog.

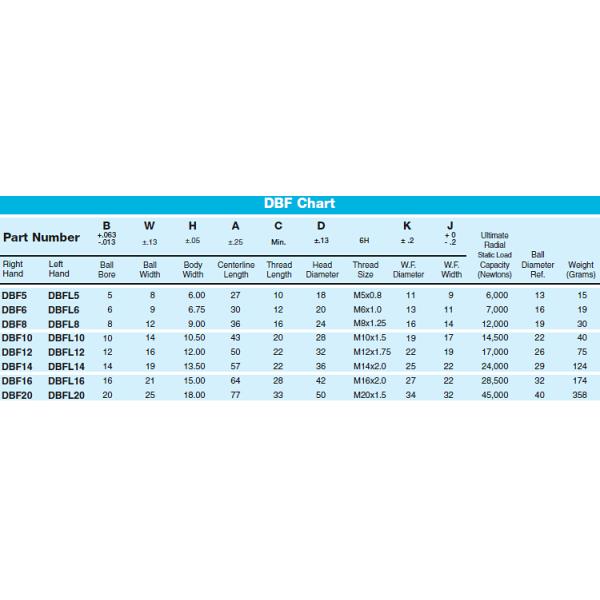

【 DBM/DBF 】
【 Company Information 】
We would like to introduce ourselves - PHIDIX MOTION CONTROLS - as one of the leading manufacturers of mechanical control cable assemblies in China. With years’ technology cooperation with our US partner CABLECRAFT, we could offer a wide range of motion control cable solutions for trucks, buses, marines, MRTs, military and aerospace applications. From agriculture to aviation, race cars to lawn and garden tractors, and construction equipment to ordnance vehicles.

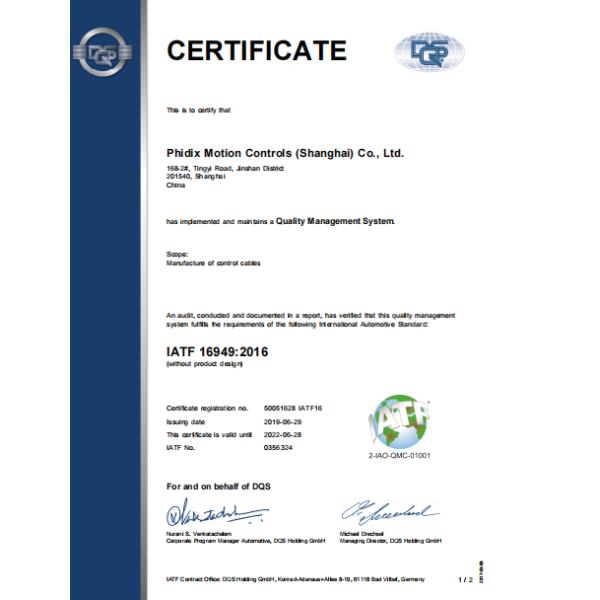

【 Certifications 】
【 Our Services 】
If you are interested in our products,please tell us which model,quality you want to order.
A performa invoice will be made for your order.
We will deliver the product ASAP when we receive your payment.
Please contact us without hesitation, we are pleased to welcome to you!!!
PHIDIX MOTION CONTROLS(SHANGHAI) CO.,LTD
Add: Building #21, Block 9299, Tingwei Road, Jinshan District, Shanghai 201505
Tel: (86-21)37214606/ 07/ 08/ 09
Fax: (86-21)37214610
MP: 13816744282
Website: www.mechanical-controlcable.com
E-mail: info @phidixglobal.com
