Brand Name : Phidix
Place of Origin : Shanghai
Certification : IATF16949
MOQ : 10 piece
Price : Negotiation
Model Number : Pull-Only T-Flex
Payment Terms : L/C,D/A,D/P,T/T
Supply Ability : 800 pcs per month
Delivery Time : 7 - 40 work days
Packaging Details : carton or wood case
Series : pull only Industrial Control Cable Assembly
Applications : Clutch Cable,Throttle Cable,Hand brake cable,Engine stop cable
Transmission direction : pull only unidirectional
Load Handling : Up to 2200 lb
Material : High-tensile carbon steel strand
Features : High temperature resistance/Low loss/Long service life
Specification | Detail |
Max Operating Temp | +105°C (with PP jacket); short-term exposure up to +120°C in ventilated enclosures |
Jacket Material Behavior | PP sheath resists thermal deformation better than PVC under sustained load |
Thermal Cycling Tolerance | Proven resistance to material fatigue in 5000+ heat/cool cycles |
Core Diameter | 0.078" / 0.125" / 0.188" |
Load Range | Up to 2200 lb (pull-only) |
Jacket Options | Black PP / Jacketless for high-temp shielding channels |
Liner | Optional high-density PP inner liner for low-friction pulls in heat-exposed zones |
![]() |

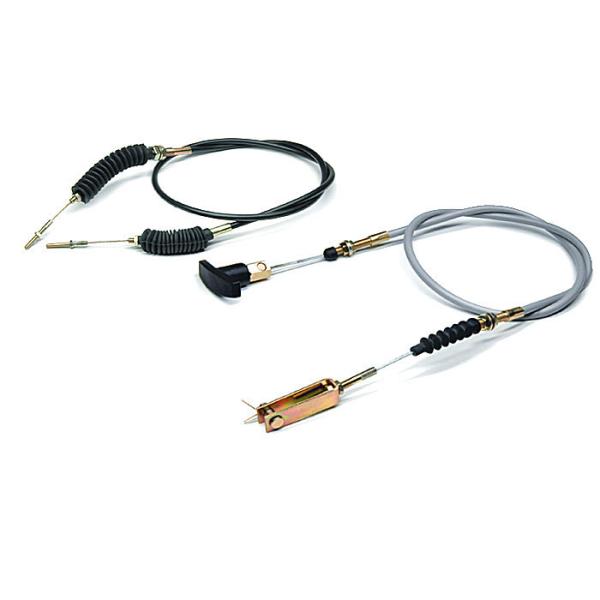

heat resistant pull only t flex control cable Images |
