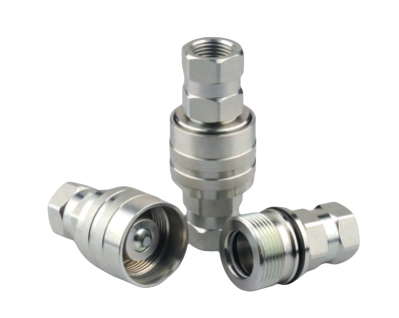

Socket with valve Plug with valve CVV Thread locked type hydraulic quick coupling
Applications
CVV Series widely used in equipments(excavators),vehicles,hydraulic equipments,drilling machines.
Sepecification:
| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 5000 | 5000 | 5000 | 5000 | 5000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range (std seals) | -20℃ to +120℃ |
| Standard seal material | NBR |
Features:
1, New valves design, it can resistance damage from high flow and the pressure of impulse that providing advanced performance.
2, Machined from solid steel barstock for durability.
3, The CVV series employs a threaded sleeve locking mechanism, mates with matching male threads on the coupler, The two halves must be manually threaded together from connection.
4, New chrome plating treatment provides advanced anti-rust performance.
5, A thread valve retainer provides a valve stop that assures positive valve alignment.
6, Compatible with FASTER CVV Series STCCHI VD Series.
| PART NO. | LS | D | HEX1 | HEX3 | A | T |
| CB-S2S-CVV | 58.6 | 34 | S19六角 | S30对边 | 13 | G1/4 NPT1/4 |
| CB-S3S-BA | 66.5 | 34 | S22六角 | S30对边 | 13 | G3/8 NPT3/8 |
| CB-S4S-BA | 76.5 | 42 | S27六角 | S36对边 | 18 | G1/2 NPT1/2 |
| CB-S6S-BA | 89.5 | 48 | S36六角 | S41对边 | 18 | G3/4 NPT3/4 |
| CB-S8S-BA | 105.5 | 56.5 | S41六角 | S51对边 | 24.5 | G1 NPT1 |
| PART NO. | LP | d | HEX2 | A | T |
| CB-P2S-CVV | 60 | M24*2 | S19六角 | 13 | G1/4 NPT1/4 |
| CB-P3S-BA | 55.3 | M28*2 | S22六角 | 13 | G3/8 NPT3/8 |
| CB-P4S-BA | 61.5 | M36*2 | S27六角 | 18 | G1/2 NPT1/2 |
| CB-P6S-BA | 83.5 | M42*2 | S36六角 | 18 | G3/4 NPT3/4 |
| CB-P8S-BA | 94.5 | M48*3 | S41六角 | 24.5 | G1 NPT1 |
